Safety Spotlight: What is the pewag PLZW-R Rapid Lifting Point and how does it improve safe lifting operations?

Traditional lifting points often require tools for installation, which can slow down setup, increase handling time, and create opportunities for incorrect tightening or poor seating. Without a clear visual confirmation that the lifting point is fully secure, operators may begin a lift without knowing whether the attachment is correctly installed, increasing the risk of unsafe load movement, equipment damage, or delays on site.

The pewag PLZW-R rapid lifting point is designed to solve that problem. It provides a fast, tool-free method of creating a temporary lifting point, allowing operators to install, lock, and confirm the lifting point quickly before repositioning or moving a load. Its click-and-go design, visual locking indicator, and protective features make it a practical safety improvement for temporary and single-use lifting applications.

What is the PLZW-R rapid lifting point?

The pewag PLZW-R is a screw-in lifting point designed for lifting and holding loads by attaching hooks, shackles, straps, and other lifting components to a temporarily installed pick point. It is intended for trained personnel and is available in three sizes covering thread sizes M10 to M16, with load capacities from 0.4t to 1.1t. The product is 360° rotatable so it can be aligned with the direction of pull, and the bracket is 180° foldable for easier positioning and handling.

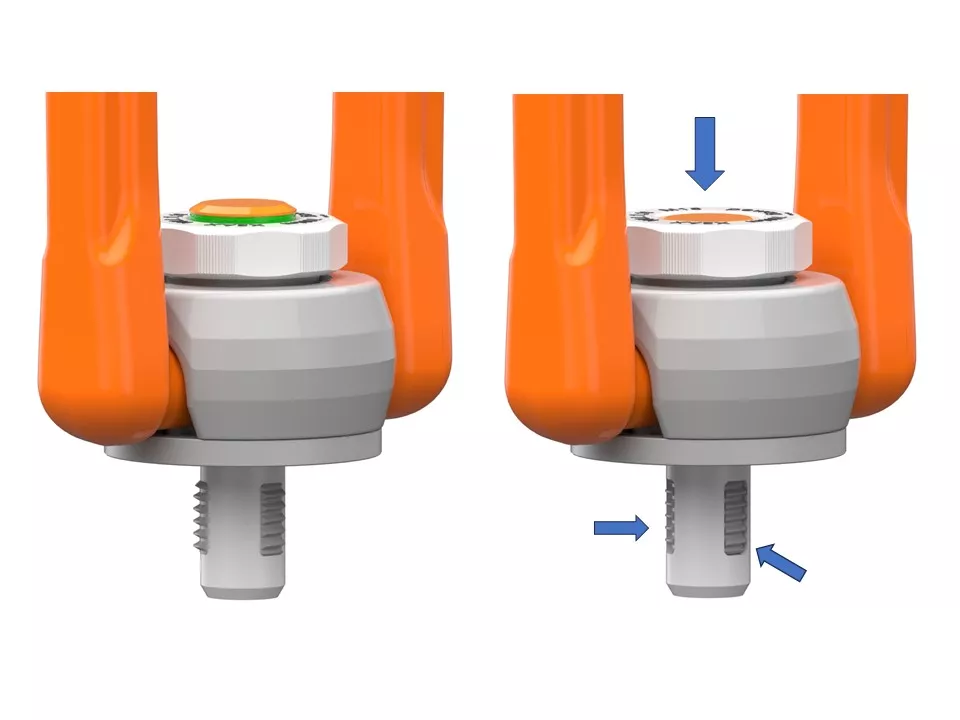

The key difference with the PLZW-R is its rapid installation method. Rather than requiring conventional tooling for temporary use, the lifting point is inserted by pressing and holding the push button to release the threaded plates, inserting the body into the threaded hole, releasing the button, and then tightening it by hand. Once correctly installed, the green locking indicator becomes visible, confirming that the lifting point is ready for use.

Why use a rapid lifting point?

When machinery or equipment has no permanent lifting points, or when a temporary pick point is needed just to reposition a load safely, speed and certainty matter. A lifting point that can be fitted quickly by hand helps reduce delays and unnecessary handling, while a visible indicator reduces the guesswork around whether installation has been completed correctly.

This makes the PLZW-R especially useful for:

• loads that require a temporary lifting point for repositioning or relocation.
• machinery with no fixed lifting points.
• single-use or short-duration lifting tasks where fast setup is important.
• maintenance or handling operations where minimising downtime matters.

Key safety and performance benefits

• Zero tools required for temporary use. The PLZW-R is designed for tool-free installation and removal in temporary applications, helping reduce manual handling and simplifying setup. For semi-permanent use, it must still be tightened using the specified torque.

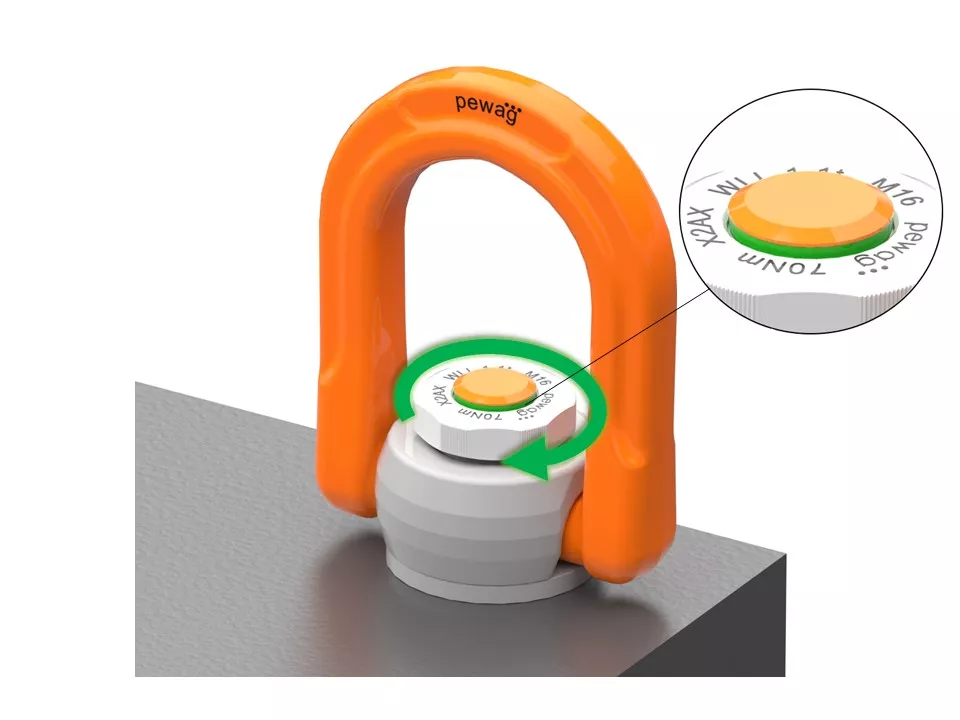

• Visual locking confirmation. The built-in locking indicator provides immediate confirmation that the lifting point has been installed correctly. The green ring must be visible before use.
• Faster setup with click-and-go function. The press-button system allows operators to insert and secure the lifting point quickly, reducing time spent on installation and making temporary lifts more efficient.
• Rust-resistant design. The screw is made from rust-resistant stainless steel, helping reduce long-term deterioration risks and supporting safe continued use in suitable environments.
• Protection for the load surface. The integrated sleeve helps protect the contact surface of the load from damage, improving contact and reducing marking or wear.
• High safety factor and traceability. The PLZW-R has a 5-fold safety factor against breakage, and each unit is supplied with an individual serial number for identification and traceability.
• Flexible alignment in use. The ring is 360° rotatable and must be aligned with the expected direction of pull before loading. The bracket can also fold 180° for improved positioning.

Technical overview

The PLZW-R range covers:

• M10 – 0.4t capacity.
• M12 – 0.5t capacity.
• M16 – 1.1t capacity.

Additional operating features include:

• operating temperature from -20°C to 200°C without reduction in WLL.
• 360° rotation for load alignment.
• 180° foldable bracket.
• hand tightening for temporary use, with torquing required for semi-permanent installation.

Preventing misuse – good practice

As with any lifting point, safe performance depends on correct use and inspection. The operating manual makes clear that the PLZW-R should only be used by trained personnel, and that users must check for visible damage, damaged threads, and correct function before each use. The lifting point must be fully seated on the load, aligned in the load direction, and the green locking indicator must be visible before lifting begins.

Good practice includes:

• checking that the threaded hole is clean and undamaged before installation.
• ensuring the contact surface rests fully on the load after installation.
• confirming that the push button and threaded plates function correctly.
• aligning the ring with the expected direction of pull before loading.
• not actuating the push button while under load.
• removing the lifting point from service if there is any doubt about safety or correct function.

Summary

The pewag PLZW-R rapid lifting point is designed to make temporary lifting point installation faster, simpler, and safer. By removing the need for tools in temporary use, adding a clear visual locking indicator, and protecting both the load surface and the lifting point itself, it helps reduce setup time while improving operator confidence. With capacities from 0.4t to 1.1t, 360° rotation, a 180° foldable bracket, rust-resistant construction, and a 5-fold safety factor, it offers a practical solution for temporary lifts where speed and safety need to work together.
